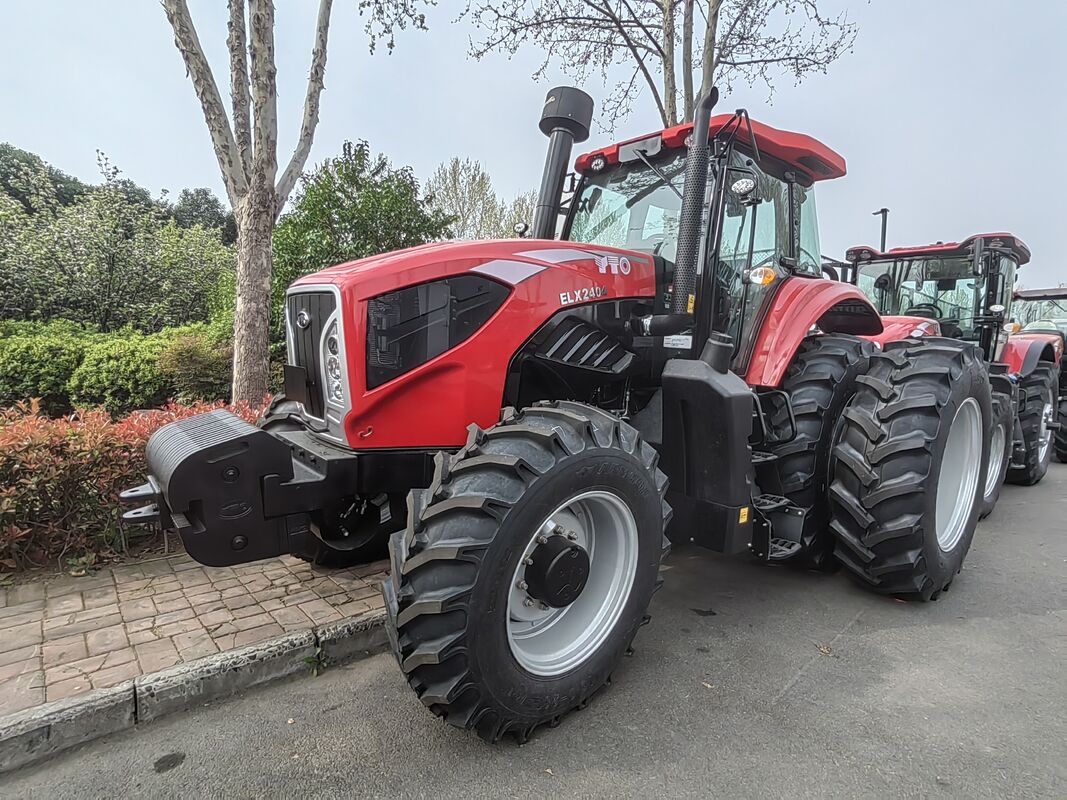

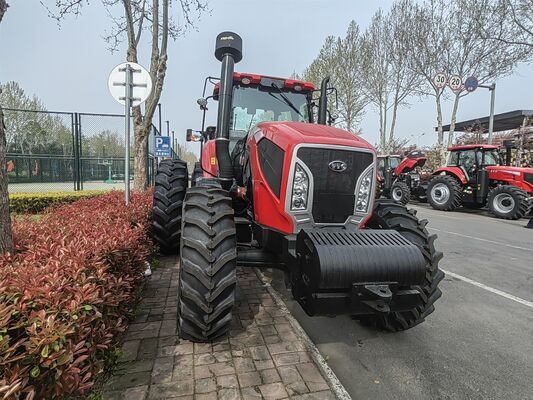

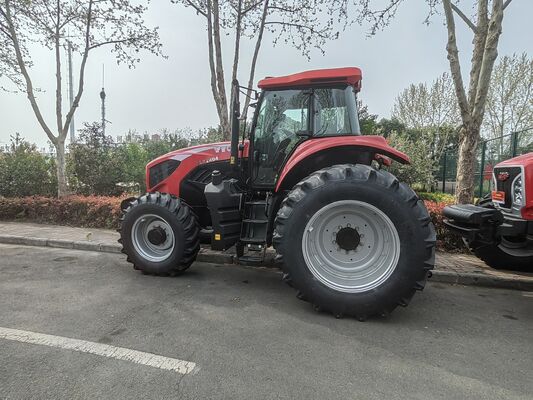

YTO Tractor ELX2404 240HP Tractor XDEM Tractor USANGU Tractor

Model

YTO-ELX2404

Overall Dimension(L*W*H)(mm)

5430*2860 /3470(dual rear wheels)* 3490

Min. Operating Mass(with Cab)(Kg)

8790(dual rear wheels)

Max. counterweight mass (front/back)

810/360

Engine

Model

SC9D250G2

Type

In-line, 4-stroke, turbocharged, air-to-air cooled

Displacement(L)

8.82

Rated Power   (kw)

177

Rated Speed  (rpm)

2200

Transmission

Gears(F/R)

12F+4R

Forward speed (km/h)

2.00-36.69

Reverse speed (km/h)

4.44-14.48

Tire

Front

16.9-28

Rear

20.8-38

Tread

Front wheels (mm)

1904-2252(1910)

Rear wheels (mm)

1780-2288(1800)

Min. Ground Clearance(mm)

470

Min. turning radius(m)

7±0.3

PTO

Type

Post-mounted, electro-hydraulic independent control

Rotation rate(rpm)

540/1000

Power(kw)

150

Tilling depth control method

position control,  floating control

Lifting Force

At 610mm  (KN)

47

Hinge point  (KN)

70
