10kg Payload 1700mm Reach 6 Aixs Industrial Robot Arm Stainless Steel Mig Welding Automatic 6-axis Robot Welding Manipulator

10kg Payload 1700mm Reach 6 Aixs Industrial Robot Arm Stainless Steel Mig Welding Automatic 6-axis Robot Welding Manipulator
10kg Payload 1700mm Reach 6 Aixs Industrial Robot Arm Stainless Steel Mig Welding Automatic 6-axis Robot Welding Manipulator

Grote Afbeelding :  10kg Payload 1700mm Reach 6 Aixs Industrial Robot Arm Stainless Steel Mig Welding Automatic 6-axis Robot Welding Manipulator

Productdetails:
Plaats van herkomst: Henan, China
Merknaam: XDEM
Certificering: CE
Modelnummer: Air10-1700-HW (Hollowwrist))-Weldingstation
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 1 set
Prijs: US$11900 1Set
Levertijd: 30 dagen
Betalingscondities: T/t, l/c
Levering vermogen: 100 sets per maand
Contact
Gedetailleerde productomschrijving
Power (W): Optioneel Kerncomponenten: PLC, motor, versnellingsbak, versnelling
Video-uitgave-inspectie: Mits Machinetestrapport: Mits
Garantie: 1 jaar Spanning: 220V
Productiecapaciteit: Optioneel Gewicht (kg): 193
Sollicitatie: Lasindustrie Dimensie (L*W*H): Optioneel
Lasmateriaal: metaal Lasmodus: MIG, TIG
Gebruik: Lasbehandeling palletisatie laden lossen Huidig: 500A, 350A

Product Information

10kg Payload 1700mm Reach 6 Aixs Industrial Robot Arm Stainless Steel Mig Welding Automatic 6-axis Robot Welding Manipulator 0

Features:

1.The hypoid gear transmission design provides outstanding rigidity, making it perfect for precision tasks like grinding.
2.Hollow diameter up to 57mm allows easy wiring and piping, reducing external interference.
3.With IP67 protection, it's designed to thrive in harsh environments like welding and machining.

4.Ideal for tight spaces and large wrist movements, meeting all your high-precision needs
5.More suitable for narrow space operation.

Application:

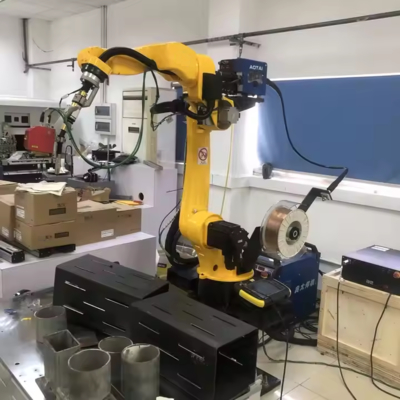

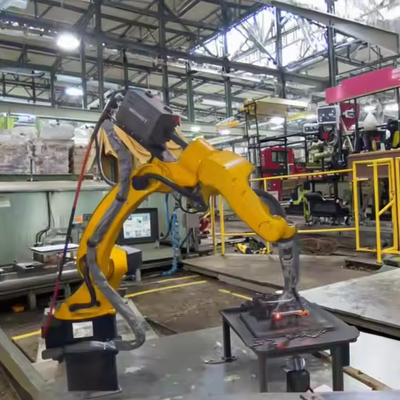

AIR10-1700-HW is developed for welding applications in civil and industrial fields, mainly used in the fields of hardware tools, metal furniture, automobile maintenance, construction, shipbuilding,pipe engineering, general machinery, also can be used in handling, palletizing, loading & unloading.
10kg Payload 1700mm Reach 6 Aixs Industrial Robot Arm Stainless Steel Mig Welding Automatic 6-axis Robot Welding Manipulator 110kg Payload 1700mm Reach 6 Aixs Industrial Robot Arm Stainless Steel Mig Welding Automatic 6-axis Robot Welding Manipulator 210kg Payload 1700mm Reach 6 Aixs Industrial Robot Arm Stainless Steel Mig Welding Automatic 6-axis Robot Welding Manipulator 3


Parameters

Type AIR10 -1700-HW
Axes 6
Payload 10kg
Manipulator Weight 193kg
Reach 1708mm
Positioning accuracy Position repeatability ±0.06mm
Ingress Protection IP54 (Wrist:IP67)
Mounting Floor/ wall/ ceiling
Working range Axis 1 rotation -170°/+170°
Axis 2 arm -85°/+150°
Axis 3 arm -100°/+170°
Axis 4 wrist -155°/+155°
Axis 5 bend -120°/+120°
Axis 6 turn -360°/+360°
Rotation rate Axis 1 rotation 210°/s
Axis 2 arm 170°/s
Axis 3 arm 220°/s
Axis 4 wrist 430°/s
Axis 5 bend 450°/s
Axis 6 turn 720°/s

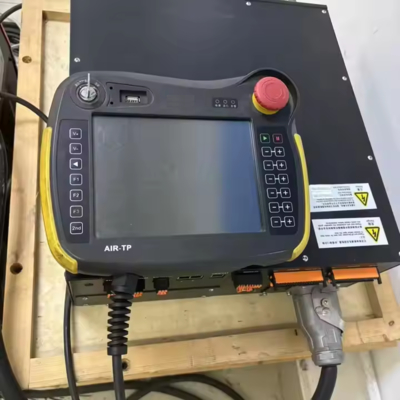

Controllers inCube20/ARC5-12
Mounting conditions Ambient temperature: 0~45℃ Humidity: not more than 95% at
constant temperature without condensation. Allow able altitude: not more than 1000m above sealevel.
No corrosive, flammable or explosive gases.



Welding Model NBC35ORL NBC50ORP
Rated Voltage/Hz 3Phase3980±10%/50
Rated Capacity KVA 14 24
Rated Current 21 38
Rated Outputvolatge 31.5 39
Rated Load Keep Ratio 660 100
Output Unload Valtage 96 106
OutputCurrent/Voltage Range 60/17--350/31.5 60/17-500/39
Carbon Steel/Stainless Steel Wire Diameter
MM		 0.8 1.0 1.2 0.8 1.0 1.2 1.6
Wire Feeding Type Feed Type
Air(L/min) 15-20
Cooling Function Air Cooling Water Cooling
Protection IP23

Company Profile

XDEM has been established for over a decade, focusing on industrial robots, core components, and industry automation solutions. The company has always been committed to the independent research and development of robotic technologies and breakthroughs in high-end equipment technology bottlenecks. At the same time, XDEM is building a forward-looking industrial layout centered on embodied intelligence and large-scale robotic behavior models within the realm of AI+robotics.
